UNI-PROP
trench strut Sizes

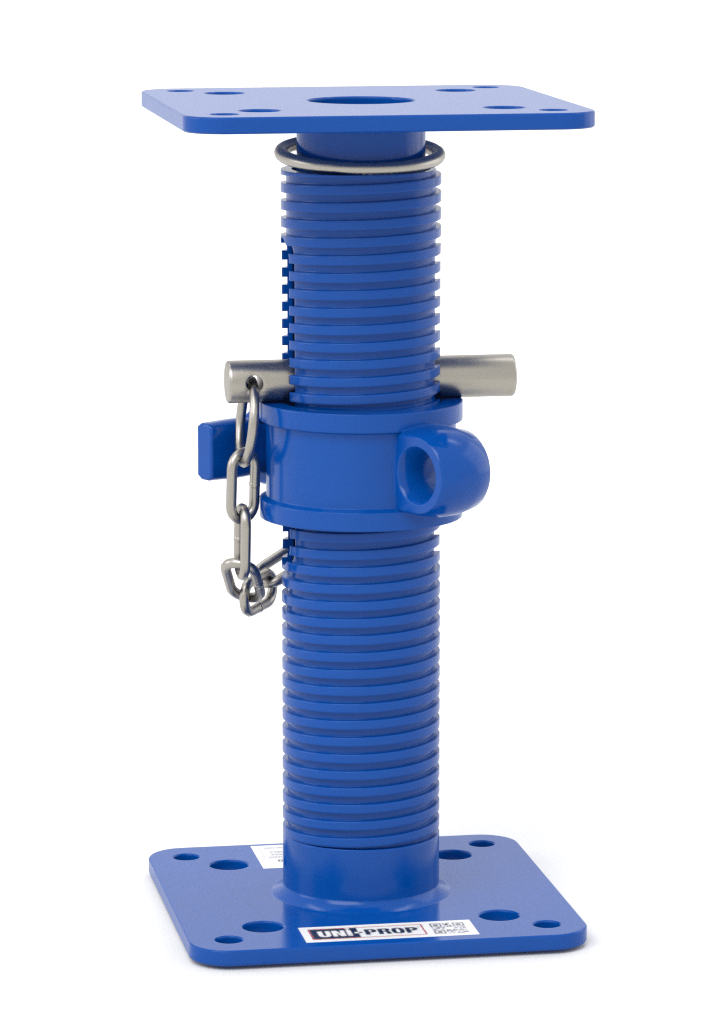

TRENCH STRUT size 0
- Extension range: 315mm – 515mm
- BS 4074
- Galvanised finish
- Anti-handtrap design
- Heavy-duty chain
- 48.3mm diameter 3mm Q345 inner tube
- 60.3mm diameter 3mm Q235 outer tube
- One piece extrusion threaded section
- Cast collar
- 150mm sq. x 6mm flat plates as standard
- Customisation options available
- Weight: 5.4kg
OR PLEASE CALL 0800 2545 456

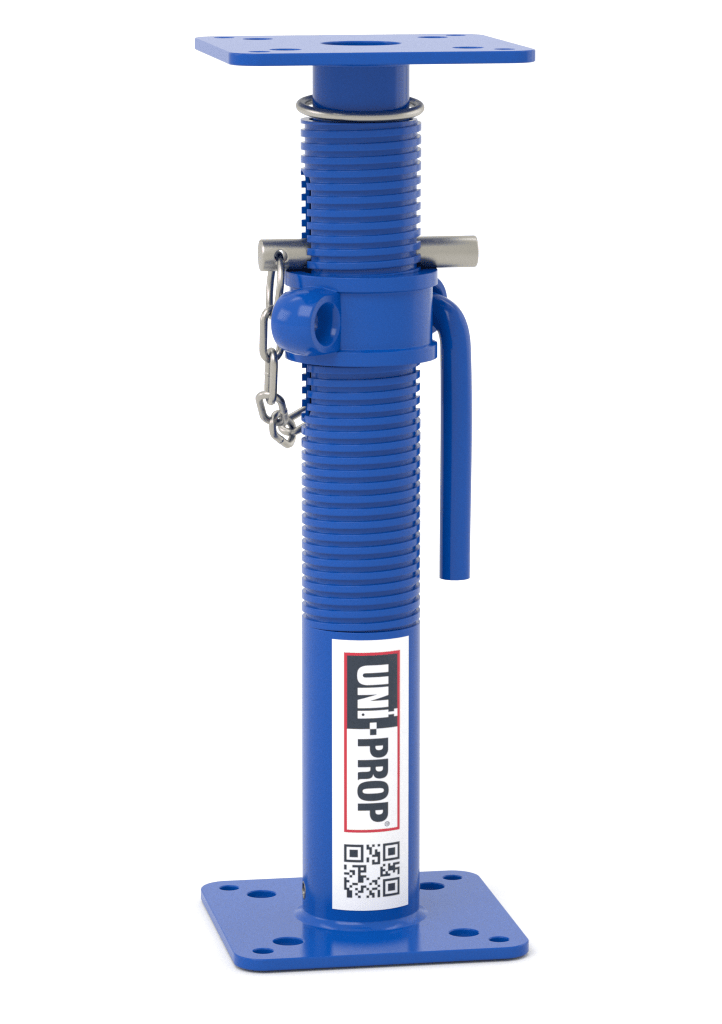

trench strut size 1
- Extension range: 490mm – 730mm
- BS 4074
- Galvanised finish
- Internal retaining rod
- Anti-handtrap design
- Heavy-duty chain or wire
- 48.3mm diameter 3mm Q345 inner tube
- 60.3mm diameter 3mm Q235 outer tube
- One piece extrusion threaded section
- Cast collar
- 150mm sq. x 6mm flat plates as standard
- Customisation options available
- Weight: 7.5kg
OR PLEASE CALL 0800 2545 456

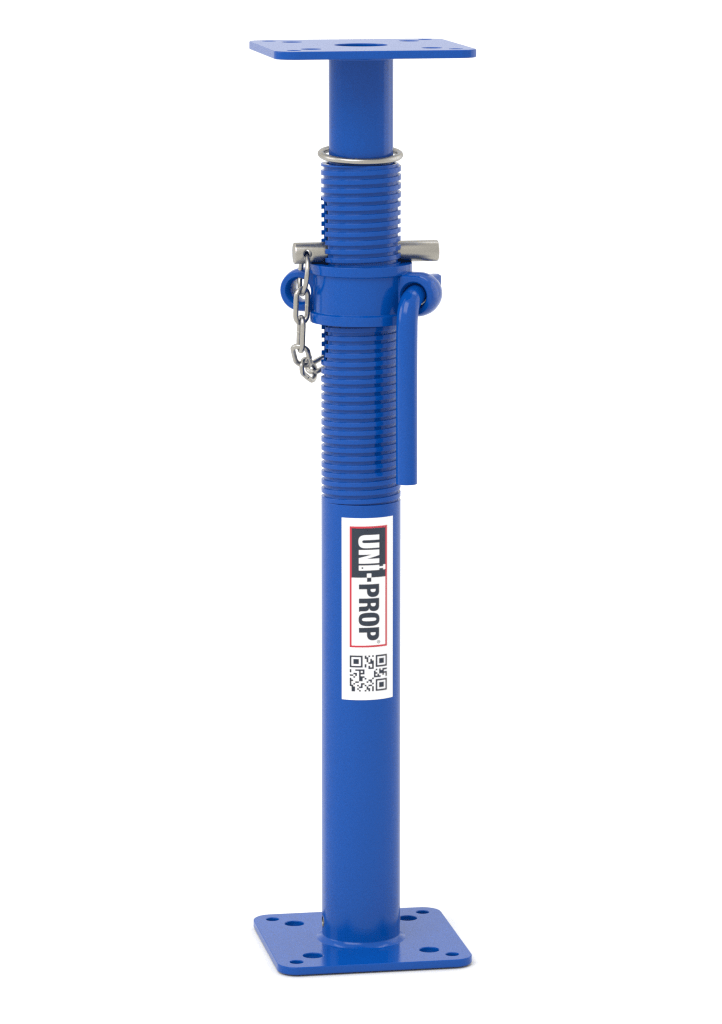

trench strut size 2
- Extension range: 695mm – 1125mm
- BS 4074
- Galvanised finish
- Internal retaining rod
- Anti-handtrap design
- Heavy-duty chain
- 48.3mm diameter 3mm Q345 inner tube
- 60.3mm diameter 3mm Q235 outer tube
- One piece extrusion threaded section
- Cast collar
- 150mm sq. x 6mm flat plates as standard
- Customisation options available
- Weight: 8.0kg
OR PLEASE CALL 0800 2545 456

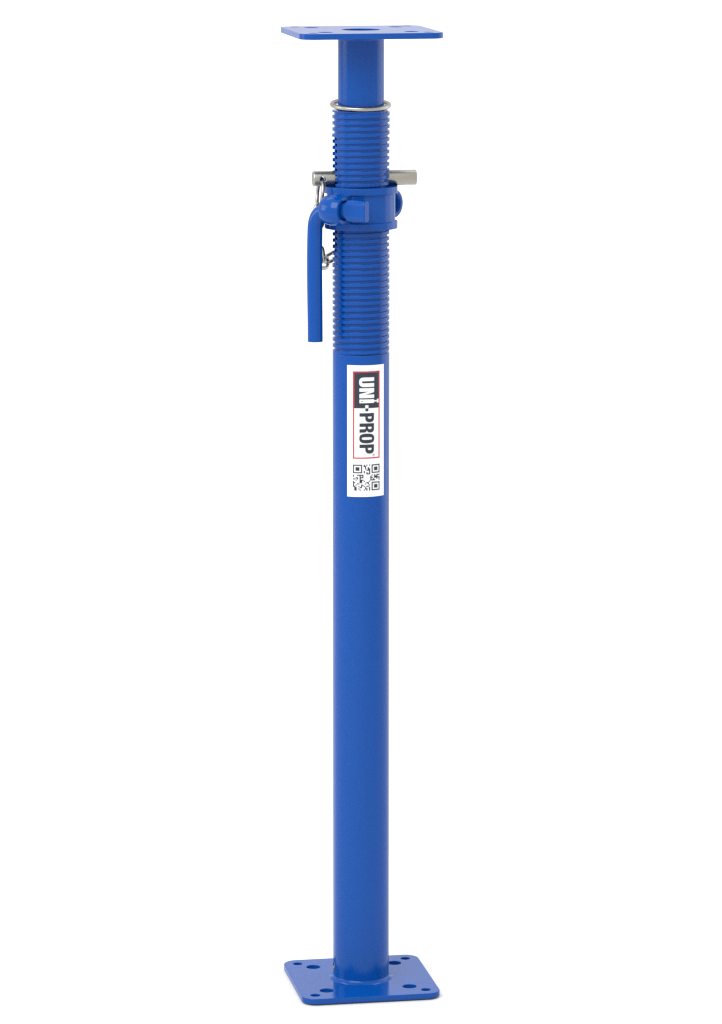

trench strut size 3
- Extension range: 1030mm – 1785mm
- BS 4074
- Galvanised finish
- Internal retaining rod
- Anti-handtrap design
- Heavy-duty chain
- 48.3mm diameter 3mm Q345 inner tube
- 60.3mm diameter 3mm Q235 outer tube
- One piece extrusion threaded section
- Cast collar
- 150mm sq. x 6mm flat plates as standard
- Customisation options available
- Weight: 10.5kg
OR PLEASE CALL 0800 2545 456
UNI-PROP
GALVANISED TRENCH STRUT
